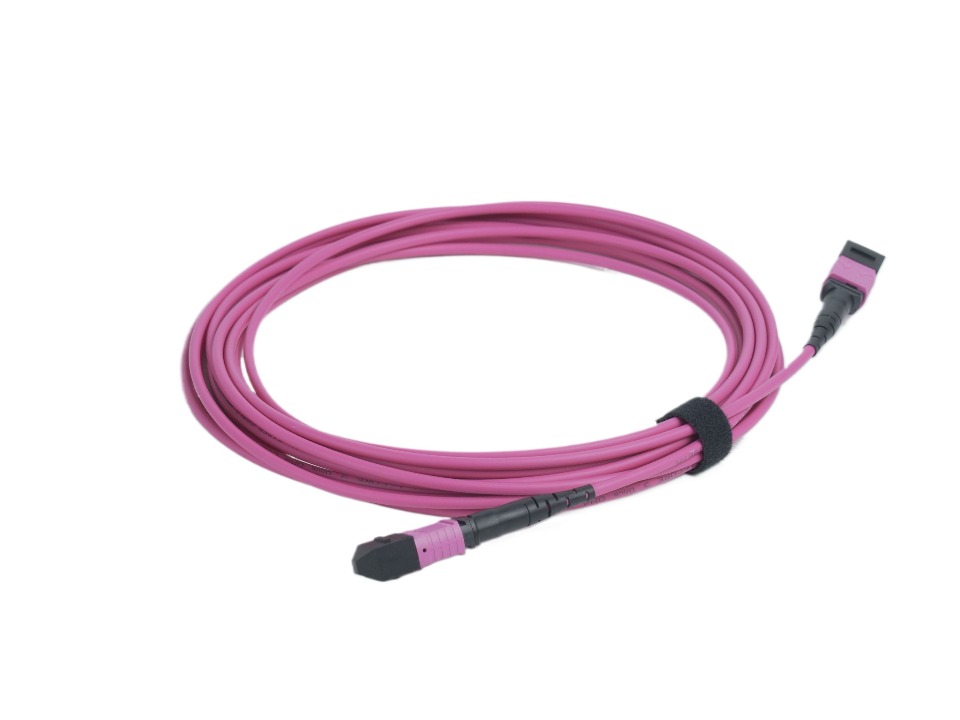

High-Density OM5 MPO to MPO Fiber Patch Cord
This enables a massive reduction in fiber count while supporting 40G, 100G, 200G, and 400G high-speed ethernet migrations with unmatched efficiency and lower infrastructure costs.
Key Features
SWDM Technology Ready: Specifically designed to support 4-wavelength SWDM applications, extending transmission reach up to 440m for 40G/100G and 150m for 400G.
Full Backward Compatibility: Seamlessly integrates with existing OM3 and OM4 networks, allowing step-by-step upgrades without replacing existing hardware.
Optimized Cable Design: Built with a space-saving 3.0mm round micro-cable to maximize rack airflow and simplify high-density cable management.
Premium Quality Connectors: Terminated with elite-grade MPO connectors to ensure ultra-low insertion loss and outstanding return loss.
100% Factory Tested: Every assembly undergoes rigorous 3D geometry testing and end-face inspection to guarantee carrier-grade reliability.
Technical Specifications
| Parameter | Specification |
| Connector Type | MPO Female / Male (US Conec MTP® available on request) |
| Fiber Count | 8, 12, 16, or 24 Cores |
| Fiber Type | OM5 Multimode Wideband 50/125μm |
| Jacket Color | Lime Green (Standard OM5) |
| Cable Jacket Material | LSZH (Low Smoke Zero Halogen) / OFNP (Plenum) |
| Polarity Type | Method A, Method B (Standard for parallel optics), or Method C |
| Insertion Loss | Standard:≤0.7dB ≤0.35dB |
| Return Loss | ≥20 dB |
| Operating Temperature | -20°C to +70°C |
3D Interferometer Geometry Pass: We utilize industry-standard 3D interferometers to ensure perfect fiber height, radius of curvature, and apex offset for flawless mating.
Automatic End-Face Inspection: Checked via automated high-resolution digital microscopes to guarantee 100% scratch-free and dust-free connector end-faces before packaging.
